INFRA EXCAVATION

LOCATION / MADRID, SPAIN

PHASE / DESIGN PROPOSAL

PROGRAM / INSTITUTE FOR INNOVATION IN INFRASTRUCTURE

Excavating Underground Infrastructure: As urbanization has been processing, transportation system has developed and be complex. It creates massive transportation infrastructure. As exceeding the amount of infrastructure, infrastructure construct new layer; it sometimes construct as bridge or deep tunnel in the underground. people.

CONCEPT MODEL PROCESS

Infra-excavation exposes the underground infrastructure [I defined as negative space] which is hidden place from city. Underground infrastructure open to visitors and students as exhibition of the "Institute for Innovation in Infrastructure" after excavation.

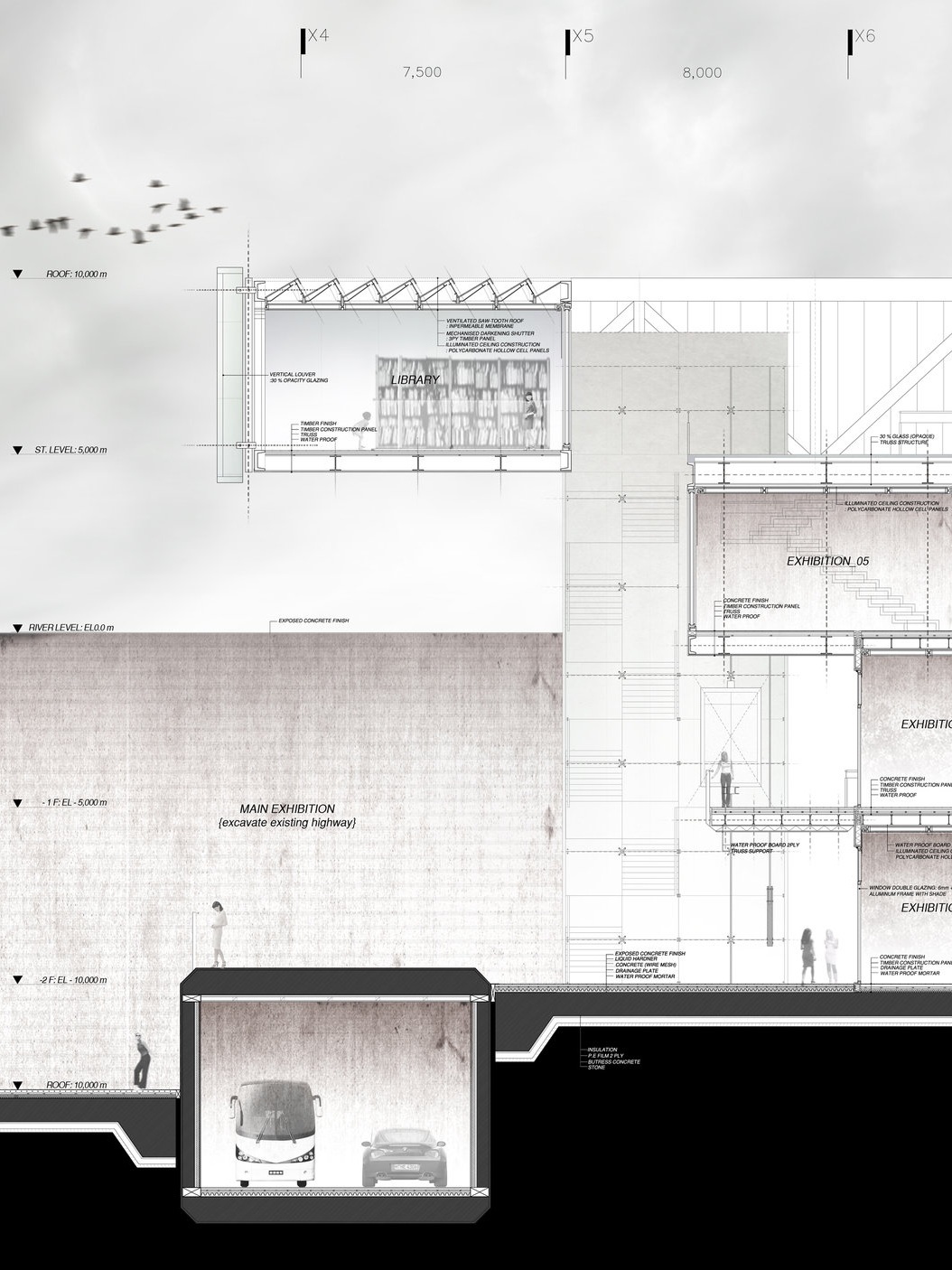

CONCEPT MODEL / DETAIL WALL SECTION

COURTYARD VIEW

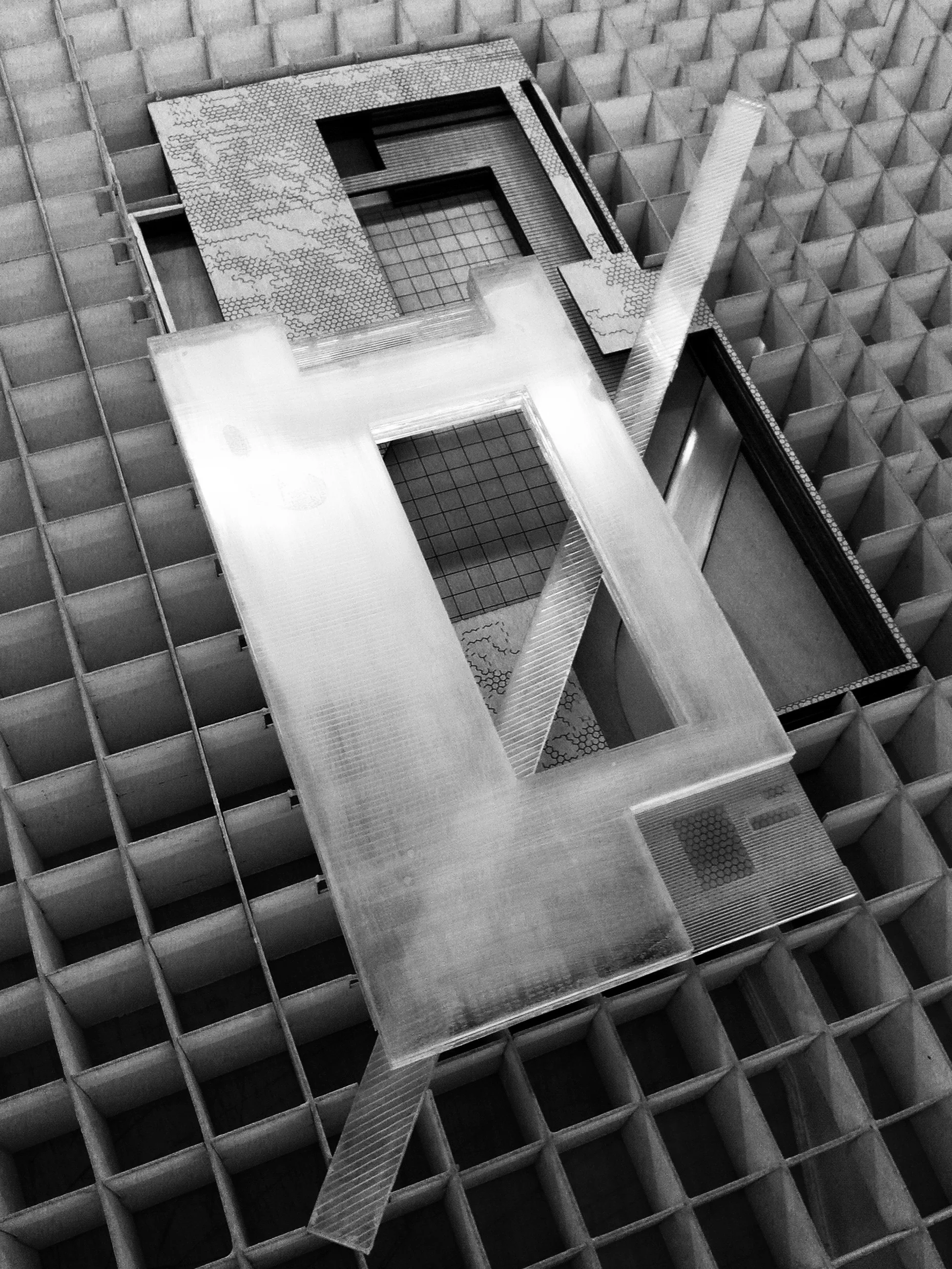

STRUCTURE PROCESS MODEL

Linear connector box supports floating mass; it is only structure to hold mass. And, its box module structure firmly supports itself.

PLANS

BRIDGE VIEW

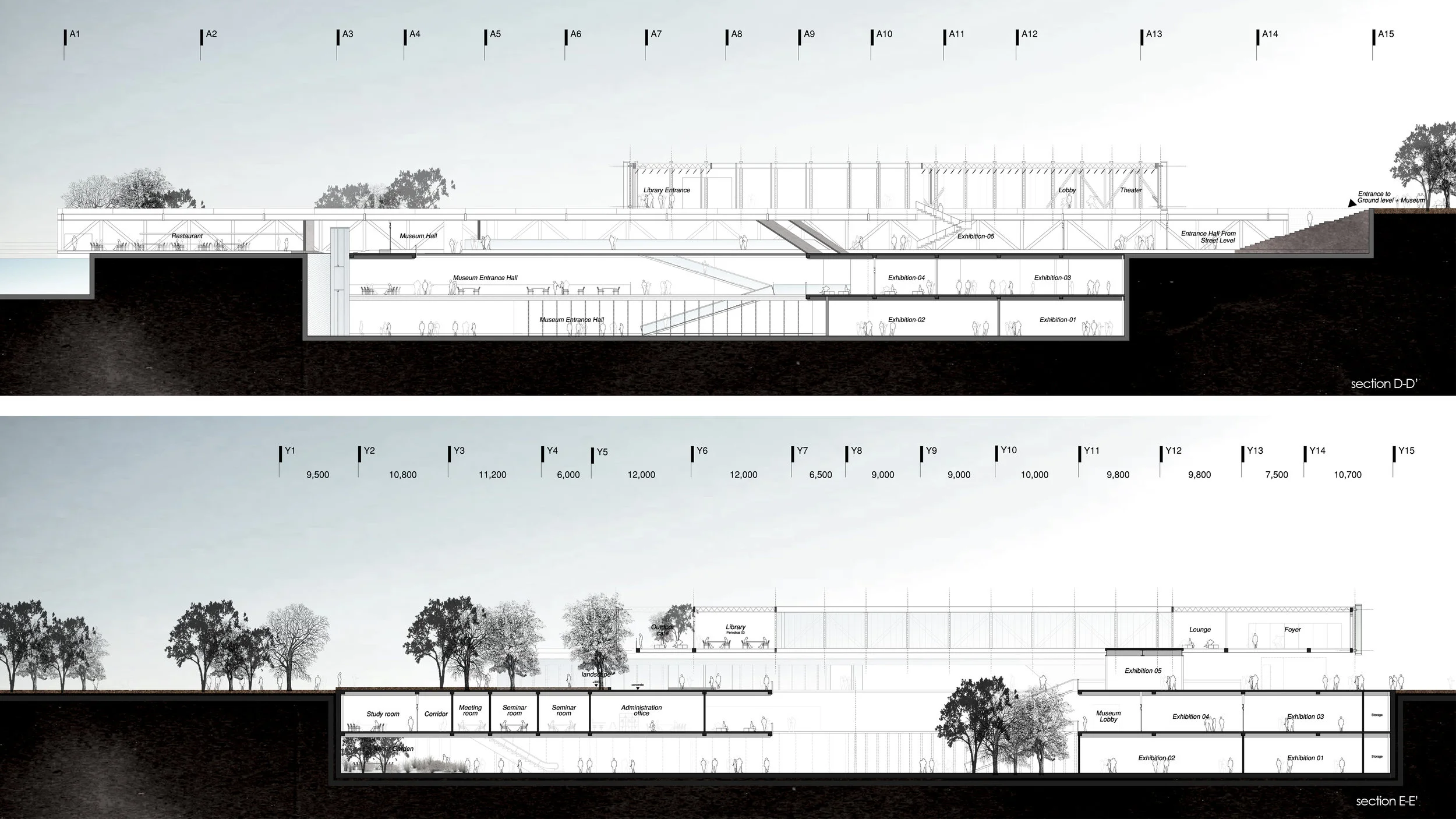

SECTIONS
